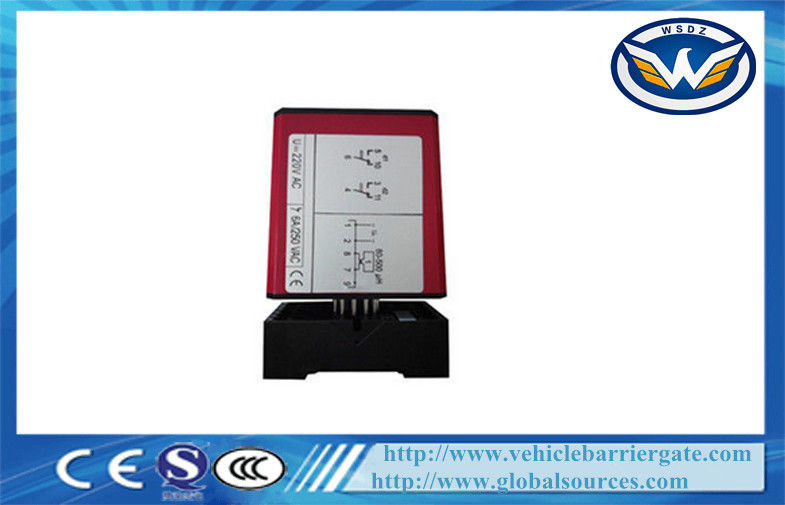

Double - Channel Vehicle Detection Loop For Car Parking Barrier Gate System

Place of Origin China
পরিচিতিমুলক নাম WONSUN
সাক্ষ্যদান CE
Model Number WSTV-410
ন্যূনতম চাহিদার পরিমাণ 1pc
মূল্য nEGOTIATE
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
ডেলিভারি সময় 3-7 কার্যদিবসের পর আপনার পেমেন্ট পেয়েছেন
পরিশোধের শর্ত টি / টি, ওয়েস্টার্ন ইউনিয়ন, মানি গ্রাম, আলিবাবা ট্রেড আশ্বাস, পেপ্যাল ​​ইত্যাদি।
যোগানের ক্ষমতা 1000 সেট / মাস

Contact me for free samples and coupons.

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
পণ্যের বিবরণ
Supply voltage 220V AC , 115V AC,24VDC/AC,12V DC/AC Frequency range 20 kHz to 170 kHz
Storage temperature -40°C to +85°C Power Consumption 4.5VA
Output relays 240V/5A Voltage tolerance DC ±15%
লক্ষণীয় করা

loop vehicle detector

,

vehicle detection loop

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

Double-channel loop detector wholesale for car parking barrier gate system



Quick Detail:



vehicle loop detector



Double channel inductive loop detectorsl
Use in car parking system..and so on
 Adjustable in 3 increments (high. Medium. Low).



Application



Loop detectors are used wherever vehicles have to be detected. Like monitoring and safe guarding access ways to counting vehicles. The output signal can be used for controlling door and gate drive mechanisms, operating barriers, controlling traffic light systems in car parks or activating card dispensers in car parks.



The WSTV-410 is a single channel inductive loop detectors. The principle is based on a change in the inductance within the loop which is caused by the metallic components of passing vehicles. The changes are picked up and evaluated by a microprocessor. Ease of use thanks to automatic calibration when the operating voltage is applied.




Features:



Single channel inductive loop detectors

Principle is based on change in inductance within loop which is caused by metallic components of passing vehicles

Changes are picked up and evaluated by a microprocessor, easy to use due to automatic calibration when operating voltage is applied

Used wherever vehicles have to be detected, like monitoring and safe guarding access ways for counting vehicles

Output signal can be used for controlling door and gate drive mechanisms, road barriers, controlling traffic light systems in car parks or activating card dispensers in car parks





Specification:



Supply voltage AC 220V, 110V, 24V, 12V
Supply voltage DC  24V, 12V
Sensitivity  adjustable in 3 increments (high .medium. low)
Operating temperature  -20°C to +65°C
 Storage temperature -40°C to +85°C
Frequency range  20 kHz to 170 kHz
Reaction time  100ms
Loop inductance Ideal:80μH to 300μH
(incl. conn. wiring)   max:50μH to500μH
Loop connection  <5m optimal
Loop connection wiring  Maximum length 200 meters
  Twisted at least 20 times per meter
Dimensions  36 x74x85 mm
