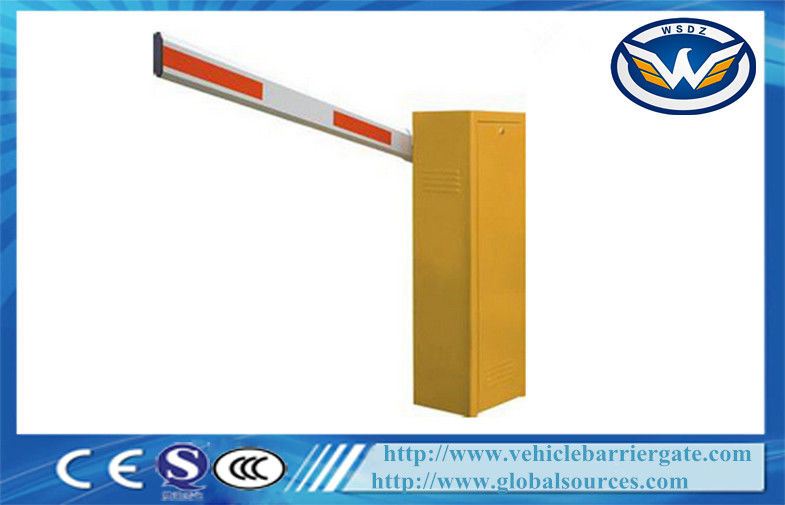

High Strength Automatic Barrier Gate Aluminum Alloy Straight boom 80W

Place of Origin China
পরিচিতিমুলক নাম WONSUN
সাক্ষ্যদান CE, ISO, SGS
Model Number WST-121
ন্যূনতম চাহিদার পরিমাণ 1pc
মূল্য negotiation
Packaging Details Packed in bubble wrap firstly, and then reinforced with carton for outer packing.
ডেলিভারি সময় 3-7 কার্যদিবসের পর আপনার পেমেন্ট পেয়েছেন
পরিশোধের শর্ত টি / টি, ওয়েস্টার্ন ইউনিয়ন, মানি গ্রাম, আলিবাবা ট্রেড আশ্বাস, পেপ্যাল ​​ইত্যাদি।
যোগানের ক্ষমতা 1000 সেট / মাস

Contact me for free samples and coupons.

হোয়াটসঅ্যাপ:0086 18588475571

ওয়েচ্যাট: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
পণ্যের বিবরণ
Aluminum Alloy আবাসন মাত্রা
বাহু দৈর্ঘ্য Max. সর্বোচ্চ। 6mtrs 6mtrs আবাসন উপাদান 2 মিমি কোল্ড রোলার ইস্পাত প্লেট
বাহুর দৈর্ঘ্য এবং উচ্চতা 100* 45 mmfunction gtElInit() {var lib = new google.translate.TranslateService();lib.translatePage('
লক্ষণীয় করা

electric barrier gate

,

auto barrier gate

একটি বার্তা রেখে যান
পণ্যের বর্ণনা

High Strength Automatic Barrier Gate Aluminum Alloy Straight boom 80W






Quick Detail:

Name: Automatic barrier gate
Speed:1s,1.8s.3s 6 seconds
Feature:Straight boom
Rated Power:80W
Certificate:CE, ISO, SGS
Net Weight:48KG
Voltage:AC220V, AC110V


Functions & Features


1. Advanced manual release

2. Boom can rise and fall on left/right side by setting on the same machine

3. No need to change the balance spring when changing the booms

4. Adopts the 3rd generation  machine core

5. Supports the infrared photocell for anti-bumping function (optional)

6. Supports the external and internal vehicle loop detector (optional)

7. Auto closing

8. RS485 communication module (optional)

9. Thermal radiates rapidly, no thermal protection

10. Die-cast aluminum alloy machine core and advanced double-stage driving motor effectively solve the problem of mechanism block up

11. Special art and craft makes out the most modernized and fashionable housing

12. Safety photo electricity limit switch


Model Selection and Differences



Model

Boom Shape

Max Boom Length

Speed

WST1211

Straight boom

6m

6 seconds

WST1212

Straight boom

4.5m

3 seconds

WST1211

90 degree, Articulated boom

5m

6 seconds

WST12122

90 degree, Articulated boom

3m

3 seconds

WST12161

180 degree, Articulated boom

5m

6 seconds

WST12162

180 degree, Articulated boom

3m

3 seconds















Specifications



Power  250W

Housing Size  344*290*1090 mm

Housing color  orange

Rail type  straight

Rail material  Aluminum Aloy

Rail lifting time  1S 1.8S (fast) /3S 6S(ordinary)

Rail length  4.5m(fast) / 6m(ordinary)

MCBF ≥5,000,000 times

Motor speed 3 0r/min

Wave pressure  optional

Bumping bounce back  optional

Working Temperature  -10°C to +45°C

Working environments   indoor,outdoor

Relative humidity <90% coagulation free



Application


Suitable for indoor as well as outdoor parking area at airport, shopping mall, warehouse, hotel, factories, condominium, car rental companies, etc. It can also be customized to be used together with any auto-pay ticketing parking or access control system


With WONSUN, your job gets easier.


Because we don’t just create “good” products, that work pretty well.Our thinking is beyond the short-term.We are conceiving, designing and creating high-tech solutions that are as advanced and effective as they are reliable and long-lasting.
Because we want to provide tools and services that truly are innovative,that will improve your performance and enhance your skills;and that will make your business easier, increasing its profitability.
Because our focus is on Quality with a capital Q.We just won’t settle for less.


Communication with customers

1)     Q: Connected power and press open/close button but automatic barrier gate no action?


A

Reason

Solution

1

Fuse blown

Check fuse and power in controller

2

Battery of remote control powered off

Change a new one

3

External protection circuit break or at protecting status

Open the barrier door and click OPEN/CLOSE button on control box

4

Same frequency interference

Check photocell and loop detector


2) Q:Connected power and press open/close button, automatic barrier gate will move but even when it is at right position, the motor still running and not stop?

A

Reason

Solution

1

Limit switch

Adjust the horizontal/vertical limit switch to correct position

2

Main controller failure

Change a new one


3)   Q: Motor running but automatic barrier gate arm no action?

A

Reason

Solution

1

Barrier arm at 45° position where is hard to move

Unlock clutch and manually rotate arm to horizontal or vertical position then try again

2

Tension of balancing spring not suitable

Adjust spring exactly

3

Low working voltage

Check the voltage and power


 4)  Q: When opening/closing, automatic barrier gate arm cannot reach right position (90° vertical & 180° horizontal)?

A.

Reason

Solution

1

Length adjustment of connecting rod not correct

Open barrier door and unlock clutch to check when arm at 90° vertical position if the master rod covers slave one; when arm at 180° horizontal position if master rod and slave one are in the same straight line

2

Nuts on the limit switch loose

Tighten the nuts when arm at 90° vertical and 180° horizontal position
